Choosing the right brightness for street lighting is more complex than you might think. For standard street lighting applications, you typically need between 3,000 to 15,000 lumens, depending on the area's size, purpose, and required light coverage. The exact lumen requirement varies significantly based on multiple factors.
What Determines the Required Lumens for Street Lights?
Not all streets need the same amount of light - requirements vary greatly depending on location and purpose.
The required lumens for street lighting are determined by these key factors:
- Road width and type (residential vs highway)
- Required illumination level (measured in lux)
- Mounting height of the fixture
- Spacing between light poles
- Local regulations and standards

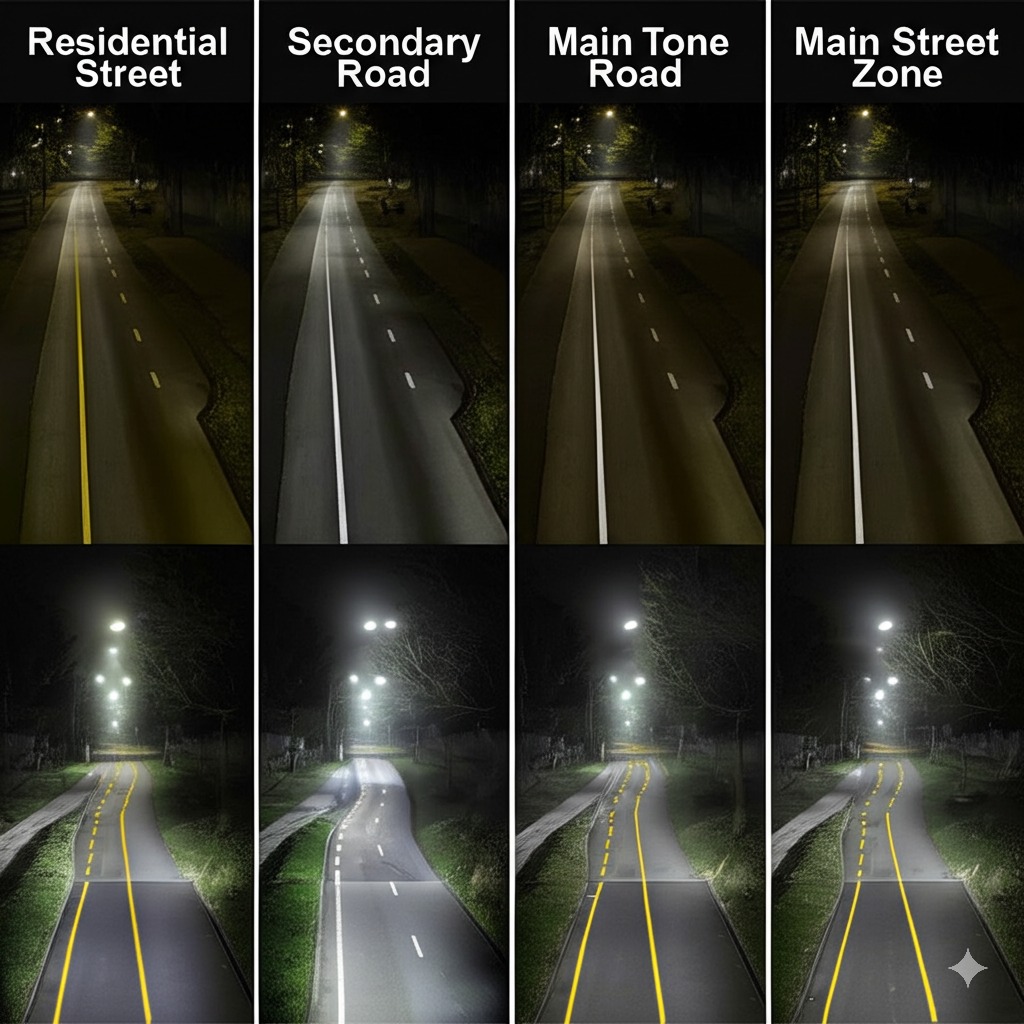

Understanding Lumen Requirements by Road Type:
| Road Type | Lumens Range | LUX Requirement | Typical Height |
|---|---|---|---|
| Residential streets | 3,000-6,000 | 5-15 lux | 4-6 meters |
| Secondary roads | 6,000-10,000 | 10-15 lux | 6-8 meters |
| Main streets | 10,000-15,000 | 15-20 lux | 8-10 meters |
| Highways | 15,000-25,000 | 20-30+ lux | 10-12 meters |
How Does LED Efficiency Affect Lumen Requirements?

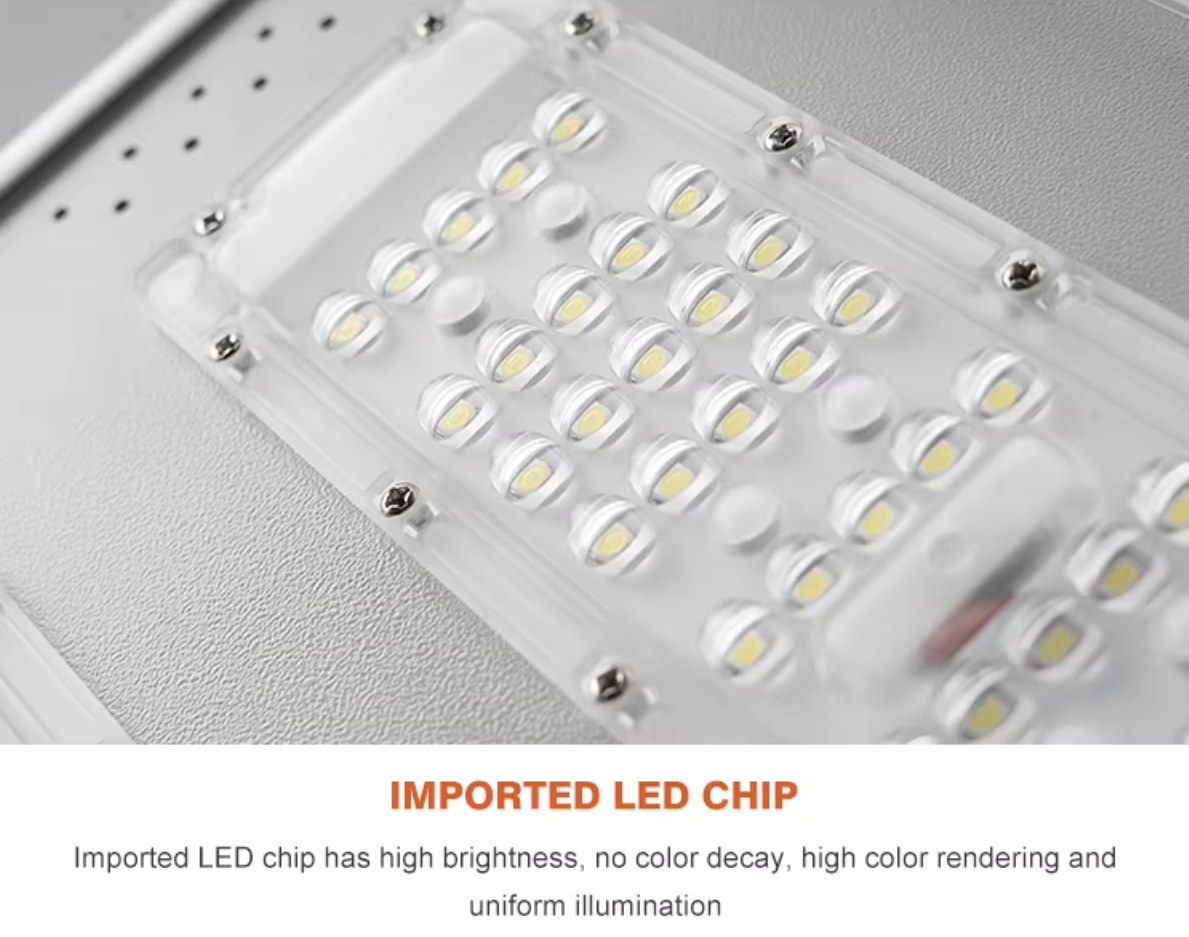

LED technology has revolutionized street lighting by providing more light with less power.
Modern LED street lights deliver approximately 100-150 lumens per watt, meaning a 10,000 lumen LED fixture would only consume about 70-100 watts compared to 400+ watts for traditional HPS lighting.
LED Efficiency Considerations:
- Lumen-per-watt ratio: Quality LEDs provide more light with less energy
- Uniformity: Proper light distribution reduces hotspot issues
- Dimmability: Smart controls can reduce nighttime output
- Long-term performance: Quality LEDs maintain brightness longer
Key points about LED street light technology:
- 50W LED = ~5,000 lumens (good for residential)
- 100W LED = ~10,000 lumens (main roads)
- 150W LED = ~15,000+ lumens (busy streets/highways)
What Are the Standard Lighting Levels for Different Areas?
Lighting requirements follow established international standards for safety and efficiency.
The Illuminating Engineering Society (IES) recommends these illumination levels:
- Parking lots: 10-20 lux (horizontal)
- Residential streets: 5-15 lux (average)
- Major roads: 15-30+ lux (average)
- Pedestrian areas: 10-20 lux (vertical)
Lighting Class Standards:
Important classifications to consider:
1. M Class (Motorized traffic):
M1 (highest): >30 lux (freeways)
M6 (lowest): ≥3 lux (local roads)
2. P Class (Pedestrian areas):
P1 (highest pedestrian traffic areas)
P6 (lowest traffic areas)
3. S Class (Supplementary lighting):
For special situations/architectural needs
How Does Pole Spacing Affect Luminosity?
Where you place the lights is just as important as how bright they are.
As a general rule, street light pole spacing should be about 2.5-3 times the mounting height, meaning taller poles allow for greater spacing between fixtures while maintaining proper illumination levels.
Pole Spacing Guidelines:
- Short poles (4-6m): Space every 12-18m
- Medium poles (6-10m): Space every 15-30m
- Tall poles (10-12m): Space every 25-36m
For consistent illumination:
- Maintain uniform brightness along the road
- Use proper spacing to avoid dark spots
- Consider local visibility needs
- Account for potential obstacles
Conclusion
For most urban streets, 5,000-12,000 lumens works well, with precise requirements depending on road type, spacing, and local standards. Proper light planning ensures optimal visibility while minimizing energy consumption.
